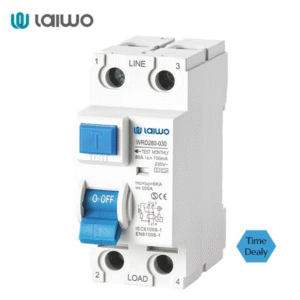

WRT Type A/AC RCCB (Time Delay)
- Pole No: 2
- Rated current(A): 80,100A
- Rated voltage: 240/415V AC
- Rated frequency: 50/60Hz
- Rated residual operating current I∆(mA):30,100
- Rated residual non operating current: 0.5l∆n
- Rated conditional breaking current Inc: 6000A
- Tripping duration Instantaneous tripping≤0.ls
- Residual tripping current range:0.5l∆n~l∆n
- Electro-mechanical endurance:4000 cycles
- Connection capacity Rigid conductor up to 35mm2
- Connection terminal Screw terminal
- Pillar terminal with clamp
- Fastening torque 2.0 Nm
- Installation: On symmetrical DIN rail 35mm
- Panel mounting
WRT Type A/AC RCCB
- Pole No: 2,4
- Rated current(A): 25 40 63 80 100A
- Rated voltage: 240/415V AC
- Rated frequency: 50/60Hz
- Rated residual operating current I∆(mA):30,100,300,500
- Rated residual non operating current: 0.5l∆n
- Rated conditional breaking current Inc: 6000A
- Tripping duration Instantaneous tripping≤0.ls
- Residual tripping current range:0.5l∆n~l∆n
- Electro-mechanical endurance:4000 cycles
- Connection capacity Rigid conductor up to 25mm2
- Connection terminal Screw terminal
- Pillar terminal with clamp
- Fastening torque 2.0 Nm
- Installation: On symmetrical DIN rail 35mm
- Panel mounting
- Certification: IEC/EN 61008-1 and IEC/EN 62423

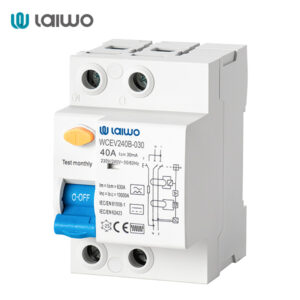

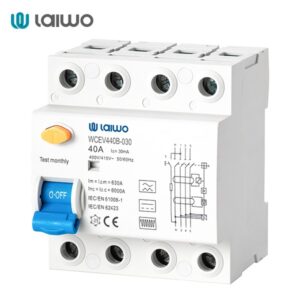

WCEV Type B RCCB
- Rated Current: 25A,40A,63A
- Rated tripping current l△n: 30mA/100mA/300mA
- Sensitivity: AC,pulsating and smooth DC residual currents
- Rated voltage Un: 230/400V AC
- Rated frequency: 50Hz
- Rated insulation voltage Ui: 440V
- Rated impulse withstand voltage Uimp: 4 kV(1,2/50)
- Rated short circuit capacity lcn: 10kA
- Peak withstand current: 3kA
- Endurance electrical: 4000 operating cycles
- Endurance mechanical:20000 operating cycles
- Operation temperature:-5℃~+40℃
- Degree of protection: IP20
- Terminal capacity: 1,5-35mm²
- Rated: 6mA Smooth DC
