WRC Type A/AC RCBO
- Rated current In (A): 6A,10A,16A,20A,25A,32A,40A,50A
- Rated voltage Ue: 230V AC
- Rated breaking capacity(lcn): 6KA,10kA
- Rated residual current: 30mA, 100mA
- Tripping characteristic: B,C
- Electrical endurance: 4000 cycles
- Mechanical endurance:100000 cycles
- Standard: BS EN 61009-1

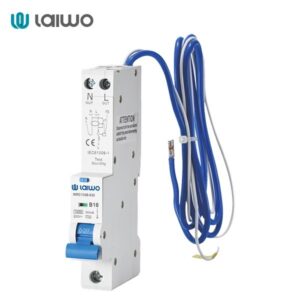

WRCS Type A mini RCBO
- Rated current In (A): 6A,10A,16A,20A,25A,32A,40A
- Rated voltage Ue: 230V AC
- Rated breaking capacity(A): 6KA
- Rated residual current: 30mA,100mA
- Tripping characteristic: B, C
- Electrical endurance: 4000 cycles
- Mechanical endurance:100000 cycles
- Standard: BS EN 61009-1

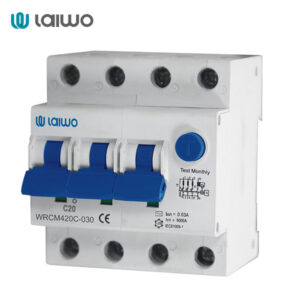

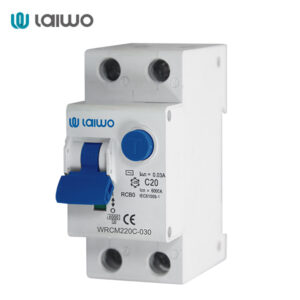

WRCM Type A/AC Electromagnetic RCBO\
- Rated current In (A): 6A,10A,16A,20A,25A,32A,40A
- Rated voltage Ue: 230V AC
- Rated breaking capacity(A): 6KA
- Rated residual current: 30mA,100mA
- Tripping characteristic: B, C
- Electrical endurance: 4000 cycles
- Mechanical endurance:100000 cycles
- Standard: BS EN 61009-1

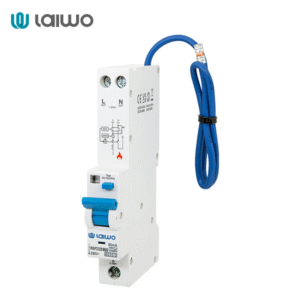

WAFD Type A/AC Arc Fault Detection with RCBO
- Rated voltage(Ue): AC230V
- Rated operating frequency: ±50Hz 2%
- Rated insulation withstand voltage(Uimp): 4kV
- Rated current(In): 6A,10A,16A,20A,25A,32A,40A
- Number of N poles: 1P+N
- Protection Curve: B
- Operating short-circuit capacity(lcs): 6kA
- Rated residual operating currentl△n: 30mA
- RCD Type: AC,A
- Insulation material group: IIIa
- Ambient Temperature range: -5~40℃
- Storage Temperature range:-25℃~+55℃
